Webdyn
For more than 15 years Webdyn designs and industrialises material and software solutions for M2M communication on the Energy, Environment, Smart Grids and Transport markets.
Webdyn is engaged in the development of leading-edge technologies based on Internet protocols and radio technologies to provide innovative and cost-effective teleservices: remote maintenance, remote management, remote control and remote monitoring.
Webdyn is a European leader of supplying multi-protocols concentrators which cover all the applications of teleservice and the monitoring. With competitive and flexible products, Webdyn covers the entire management of your distant equipments.
The range of specific products and services supplied by the company covers all applications requiring the integration of IP technologies in your remote management or automated systems.
With vital information for your machinery (operating status, inventory, diagnostic, traceability, alarms) available at any time, equipment is managed easily and securely in real time via your Web services.
Photovoltaic Solar is Authorised Distributor of Webdyn in India.
Webdyn offers 2 Data loggers 1) WebdynSun 2) WebdynModbus

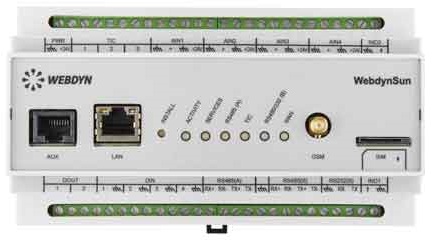

WebdynSun
The WebdynSun gateway is used to monitor and collect data from a solar plant installation.The gateway brings together on a single unit all the indicators from the inverters, the electric meters and the environmental sensors (sunshine intensity, temperature, wind speed, etc.).
Operation
- Data formatted (csv) and sent periodically through the GPRS, Ethernet or telephone network (STN) to a federating server
- Triggering and transmission of alarms in real time according to the status of the variables
- Reception on the WebdynSun gateway of control file from the central server enabling it to operate local actions
- Remote updating of the configuration and firmware
- Synchronisation of all the gateway functions with the server via web services
Installation
- The first configuration is carried out via the pages of the embedded web server
- Once configuration has been carried out, data collection can start in an automatic and periodic mode
- After synchronising with the remote server, all configurations/actions can be carried out remotely: equipment, data server address, data format, collection frequency, etc.
WebdynModbus
The WebdynModbus gateway enables to manage or collect data from Modbus equipments (slaves). On a single box, the gateway include a RTU Modbus or TCP Modbus interface and an Ethernet and GPRS interfaces to commmunicate with the information system.
Operation
- The WebdynModbus gateway works like a Modbus master. It enables to manage a set of slaves connected on a wired bus (RTU mode) or an Ethernet link (TCP)
- All the variables associated to each Modbus slave are defined in the configuration files and/or the local HTML interface
- All the data associated to each Modbus slave are reachable in reading & writing
- Collected data (reading mode) are formatted (csv) and sent periodically through the GPRS or Ethernet network to a federating server
- Reading data are specified in the configuration file
- All the gateway functions can be synchronised with the server by using web services
Installation
- The first configuration is carried out via the pages of the embedded web server
- Once configuration has been carried out, data collection can start in an automatic and periodic mode
- After synchronising with the remote server, all configurations/actions can be carried out remotely: equipment, data server address, data format, collection frequency, etc.
