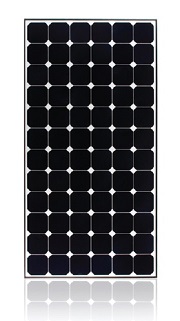

Vikram Solar
Vikram Solar is a globally recognized leading solar panel provider, specializing in high efficiency PV module manufacturing. With an international presence across 5 continents, they are an active contributor in shaping the solar revolution. Vikram solar is the first indian module manufacturer listed on the Tier 1 Bloomberg list.
Vikram solar modules are known for the following features:
- Up to 27 years of linear power output warranty
- Product warranty of up to 12 years
- 100% EL tested to ensure micro crack free modules
- Certified for PID resistance
- Certified for salt mist corrosion resistance – severity VI
- Certified for ammonia resistance
- Positive power output tolerance up to 5 Wp
- Engineered to provide Excellent Low Light Response
- Extremely Narrow Power Binning Tolerance to reduce current mismatch loss in single string
- Approvals and Certificates: IEC 61215 Ed2, IEC 61730, IEC 61701, IEC 62716, UL1703, CE, MCS*, CEC*, PV Cycle*, IEC 62804, CAN/CSA 61730*, CEC (Australia)*
Photovoltaic Solar is Authorised Distributor of Vikram Solar in India.
TECHNICAL SPECIFICATIONS:
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power (%/C) |
|---|---|---|---|---|---|---|
| 40 Watt Panel | 17.84 | 2.25 | 21.95 | 2.44 | 12.94 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 50 Watt Panel | 17.89 | 2.8 | 21.77 | 3.04 | 12.35 | -0.41 |
| 55 Watt Panel | 18.28 | 3.01 | 22.04 | 3.28 | 13.58 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 80 Watt Panel | 18.09 | 4.43 | 22.24 | 4.76 | 14.05 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 100 Watt Panel | 17.99 | 5.57 | 21.84 | 6.11 | 13.03 | -0.41 |
| 105 Watt Panel | 18.2 | 5.78 | 22.35 | 6.22 | 13.69 | -0.41 |
| 110 Watt Panel | 18.4 | 5.99 | 22.78 | 6.4 | 14.34 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 140 Watt Panel | 17.74 | 7.9 | 22.25 | 8.3 | 14.09 | -0.41 |
| 145 Watt Panel | 17.79 | 8.16 | 22.29 | 8.54 | 14.59 | -0.41 |
| 150 Watt Panel | 17.85 | 8.41 | 22.58 | 8.7 | 15.09 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 250 Watt Panel | 30.5 | 8.20 | 37.4 | 8.75 | 15.4 | -0.41 |
| 252.5 Watt Panel | 30.5 | 8.27 | 37.5 | 8.80 | 15.5 | -0.41 |
| 255 Watt Panel | 30.6 | 8.33 | 37.6 | 8.84 | 15.7 | -0.41 |
| 257.5 Watt Panel | 30.7 | 8.38 | 37.8 | 8.88 | 15.8 | -0.41 |
| 260 Watt Panel | 30.8 | 8.43 | 37.9 | 8.93 | 16 | -0.41 |
| 265 Watt Panel | 30.9 | 8.57 | 38.1 | 9.03 | 16.3 | -0.41 |
| 267.5 Watt | 31 | 8.64 | 38.2 | 9.09 | 16.4 | -0.41 |
| 270 Watt Panel | 31 | 8.70 | 38.3 | 9.15 | 16.6 | -0.41 |
| Solar Panel (Pmax Wp) | Maximum Voltage (Vmpp) | Maximum Current (Impp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency (η%) | Temperature Coefficient of Power |
|---|---|---|---|---|---|---|
| 300 Watt Panel | 37.1 | 8.10 | 45.6 | 8.58 | 15.5 | -0.41 |
| 302.5 Watt Panel | 37.1 | 8.15 | 45.6 | 8.64 | 15.6 | -0.41 |
| 305 Watt Panel | 37.2 | 8.2 | 45.7 | 8.69 | 15.7 | -0.41 |
| 307.5 Watt Panel | 37.3 | 8.25 | 45.7 | 8.76 | 15.8 | -0.41 |
| 310 Watt Panel | 37.4 | 8.35 | 45.7 | 8.81 | 16 | -0.41 |
| 312.5 Watt Panel | 37.4 | 8.35 | 45.8 | 8.87 | 16.1 | -0.41 |
| 315 Watt Panel | 37.5 | 8.4 | 45.8 | 8.92 | 16.2 | -0.41 |
| 317.5 Watt Panel | 37.6 | 8.45 | 45.9 | 8.98 | 16.4 | -0.41 |
| 320 Watt Panel | 37.7 | 8.5 | 46 | 9.03 | 16.5 | -0.41 |
| 322.5 Watt Panel | 37.7 | 8.55 | 46.1 | 9.08 | 16.6 | -0.41 |
| 325 Watt Panel | 37.8 | 8.6 | 46.2 | 9.13 | 16.7 | -0.41 |
